Fiber Coupled and Collimated Laser Diode Modules

fiber coupled laser diode modules

Fiber coupled laser diode modules



Fiber coupled laser diode modules

Features

  • High power and high brightness
  • Single wavelength and single fiber output
  • Fiber core diameter 0.05-1.0mm, NA 0.22
  • Fiber connector output SMA 905 (typical)
  • Wavelength output 780-1530nm
  • Flexible for system integration
  • High coupling efficiency
  • Power output up to 10KW

    • Typical Products and Specifications(Typical Products)


    Product Name Outpower Fiber Core Diameter
    F10-XXX-0.5 10W 50 µm
    F20-XXX-1 20W 100 µm
    F150-XXX-2 150W 200 µm
    F200-XXX-4 200W 400 µm
    F250-XXX-6 250W 600 µm

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm

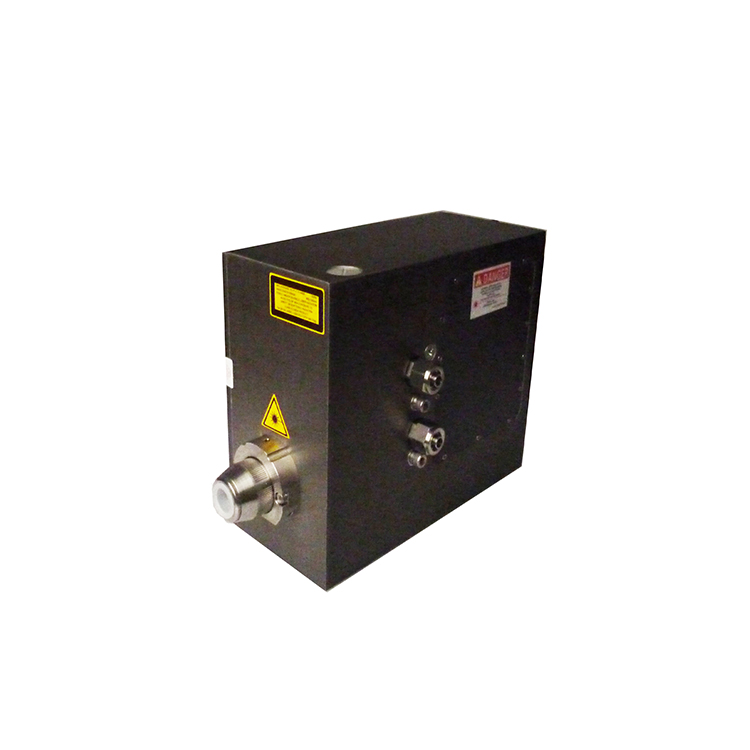

    1500W-3500W Laser Diode Modules for direct connect with fiber cable

    1500W-3500W Laser Diode Module



    1500W-3500W Fiber Output Diode Lasers Module

    Features

  • Output Power 1500W-3500W
  • Connection for Fiber Cable
  • Fiber termination: SMA, QBH
  • Cost effective
  • OEM Laser Diode Module for integration

    • Typical Products and Specifications(Typical Products)


    Product Name Outpower Fiber Core Diameter
    F500 500W 600µm
    F1500 1500W 600µm
    F3500 3500W 600µm

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm

    collimated laser diode

    Collimated laser diode modules



    Collimated laser diode modules

    Features

  • High power and superior beam quality
  • Polarized beam output
  • Low divergence (~3mrad)
  • Wavelength 780-1530nm
  • Power output up to 1.5KW with signal wavelength
  • Single wavelength or multi-wavelength output
  • Compact design
  • Maintenance free
  • Flexible for system integration

    • Typical Products and Specifications(Typical Products)


    Product Name Outpower Divergence (FWHM) Beam Dimensions
    C35-XXX-0 35W 4x4 mrad 11x11mm
    C150-XXX-0 150W 4x4 mrad 16X22mm
    C550-XXX-0 550W 4x4 mrad 33X32mm
    C1000-XXX-0 1000W 4x4 mrad 32X32mm

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Model Number Breakdown (CY-XXX-0) C:Model Type: C = Collimated Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. 0: No Fiber output

    3500W LD cladding head

    3000W Direct Diode Lasers Head



    3500W-10,000W Direct Diode Lasers

    Features

  • Output power 3500W, 10,000W
  • Various focused spot size: 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc.
  • Cost effective
  • Light weight, long working distance
  • Ready for integration
  • Surface cladding and material surface process

    • Typical Products and Specifications(Typical Products)


    Product Name Outpower Spot
    S3500 3500W 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc
    S5000 5000W 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc
    S10000 10,000W 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Laser Diode OEM Application

    500W Laser Diode Module

    500W Diode Lasers OEM Module



    500W Direct Diode Lasers

    Features

  • Output Power 200W-500W
  • Ready for fiber connection
  • Cost effective
  • Air Cool Module
  • Fiber output, SMA connection

    • Typical Products and Specifications(Typical Products)


    Product Name Outpower Fiber Core Diameter
    F200 200W 600µm
    F400 400W 600µm
    F500 500W 800µm

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm

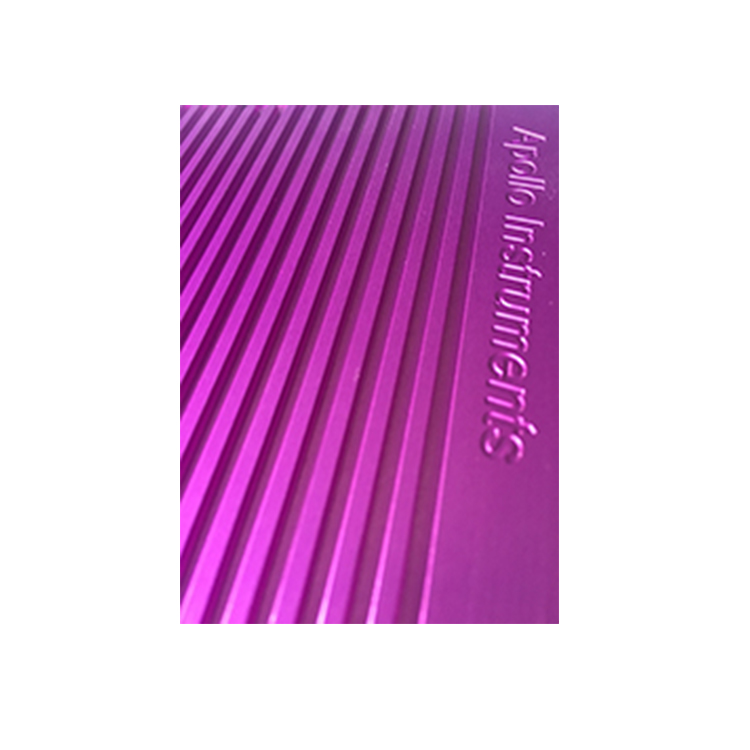

    module specification and option

    Specification and Options



    Modules Options

    In addition to our standard designs, Apollo Instruments offers many existing design modifications that allow for a high degree of product customization. Apollo Instruments also supplies a variety of optical options, such as low aberration focusing and/or collimation assemblies, mirrors, filters, spatial filters, and other accessories. Please inquire for further information if these options or other features can better help us meet your needs.

    Specification and Options

    Operation current 45-90A
    Cooling Tap water or conduction
    Pilot Beam A low power visible diode laser can be integrated into the laser modules for tracking the laser output. Power to the pilot beam is integrated in Apollo's laser diode driver. If a different laser is used, a 2.5V-3.5V DC power source should be supplied.
    Operation Modes These laser diode devices can be designed to operate with high-power output in QCW mode and other pulse modes. The short pulse option allows the module to produce very short (ns level) pulses as a stand-alone device.
    Photodiode Sensor A photodiode sensor placed in the module provides the user with a precise gauge of the laser status.
    TEC Cooling Stage Some products can be equipped with our TEC cooling stage. Together with a thermal electric cooler (TEC) and heat sink, the cooling stage allows precision cooling. Based on your need, the heat sink can be air-cooled or water-cooled.
    Laser Diode Driver The advanced circuit design and layout of the laser diode driver provides a low noise, highly stable output current. External digital modulation input allows precision control of the laser output for use in a variety of applications. A slow-start sequence as well as multiple shorting and current limiting circuits provides superior protection during operation of the laser diode.
