Fiber Output Diode Systems For Material Processing

Diode Laser 3500W for Welding and Cladding

Fiber Output Diode Laser System



1700W, 3500W 5000W Fiber Output Diode Lasers

Features

  • Output Power 1700W, 3500W, 5000W
  • Various Focused spot size: 1.5X16, 1X4, 1X2, 4X4, 2X50mm etc.
  • Cost effective
  • Light weight, long working distance
  • PLC Interface, ready for integration
  • Surface cladding and material surface process
  • Fiber output, QBH connection
  • Typical Products and Specifications(Typical Products)


    Product Name Outpower Fiber Core Diameter
    S1700 1700W 600µm
    S3500 3500W 600µm
    S5000 5000W 600µm

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm

    1500W-3500W Laser Diode Module

    1500W-3500W Laser Diode Module



    1500W-3500W Fiber Output Diode Lasers Module

    Features

  • Output Power 1500W-3500W
  • Connection for Fiber Cable
  • Fiber termination: SMA, QBH
  • Cost effective
  • OEM Laser Diode Module for integration
  • Typical Products and Specifications(Typical Products)


    Product Name Outpower Fiber Core Diameter
    F500 500W 600µm
    F1500 1500W 600µm
    F3500 3500W 600µm

    We also offer other models not listed above. For more information, please contact us with a model number of your choice.

    Model Number Breakdown (FY-XXX-Z) F:Model Type: F = Fiber coupled laser diode module Y:Output Power (W): Up to 10kW XXX:Wavelength (nm) *Standard: 808, 915, 940, or 980 nm *Non-standard available. Please inquire. Z:Fiber Core Diameter (in hundreds of microns): 0.05-1.0mm

    Direct Laser Diode Applications


    Welding



    0.2mm thickness ssl welding

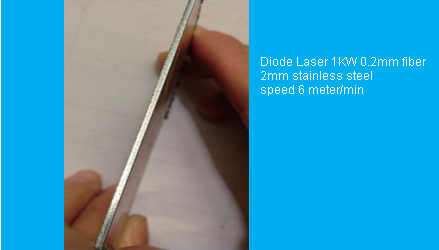

    Laser Cutting



    Laser Diode system for steel cutting

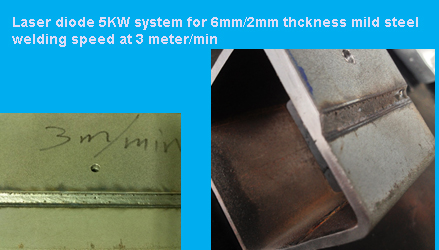

    Overlap Welding



    3 meter per min welding

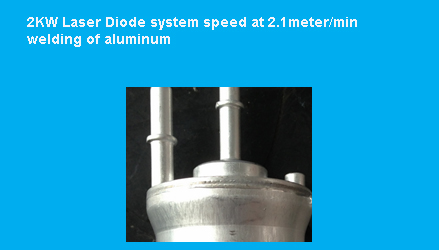

    Aluminum welding



    Alumimum welding

    3D Printing



    Laser Diode for 3D Printing

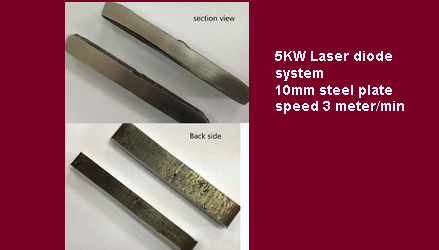

    welding 10mm Steel



    welding 10mm steel at 3meter/min

    Homogeneous beam spot



    98% homogenity beam spot

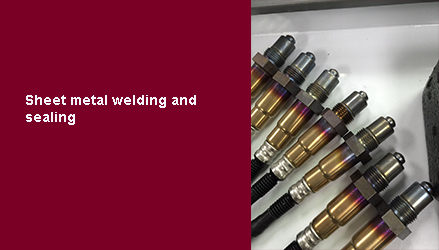

    Welding and sealing



    welding and sealing
