Fiber laser 100W systems



Fiber laser 100W

Features

  • CW Power Output (max.) 100W
  • Wavelength length 1070nm
  • Spectral Width (FWHM) +/-10nm
  • Single mode
  • M^2 ~1.1
  • Beam Divergence ~0.06 NA
  • Input voltage 110-220VAC

    • Typical Specifications


    General Spec. Type Units
    CW power output (max.) 100 W
    Polarization Random
    Collimated bean diameter 1, 5, 8, (custom) mm
    Cooling method Air cool
    Case operating temperature 10-30 Celsius
    Case storage temperature -10 to 60 Celsius
    Weight 60 lb
    Minimum fiber Bend radius 150 mm

    * The numerical aperture of the output beam is defined as the sine of the half-angle of the divergence cone that encircles 90% of the energy.

    ** The termination is an SMA-905 male, fiber-optic connector.


    fiber laser system

    Fiber laser 400W systems



    Fiber laser 400W

    Features

  • CW Power Output (max.) 400W
  • Wavelength length 1070+/-10nm
  • M^2 ~1.1
  • Power tuning range 10-100%
  • Input voltage 110-220VAC

    • Typical Specifications


    General Spec. Type Units
    CW power output (max.) 400 W
    Polarization Random
    Rise/fall time less 5 us
    Max modulation frequency 100 kHz
    Collimated bean diameter 1, 5, 8, (custom) mm
    Delivery fiber length 8-10 (or custom) m
    Cooling method Water
    Max power consumption 2200 W
    Case operating temperature 10-40 (water: 15-25 deg ) Celsius
    Case storage temperature -10 to 60 Celsius
    Pilot beam Red
    External control Analogue
    Dimension 500X480X180 mm
    Weight 48 kg
    Minimum fiber bend radius 150 mm

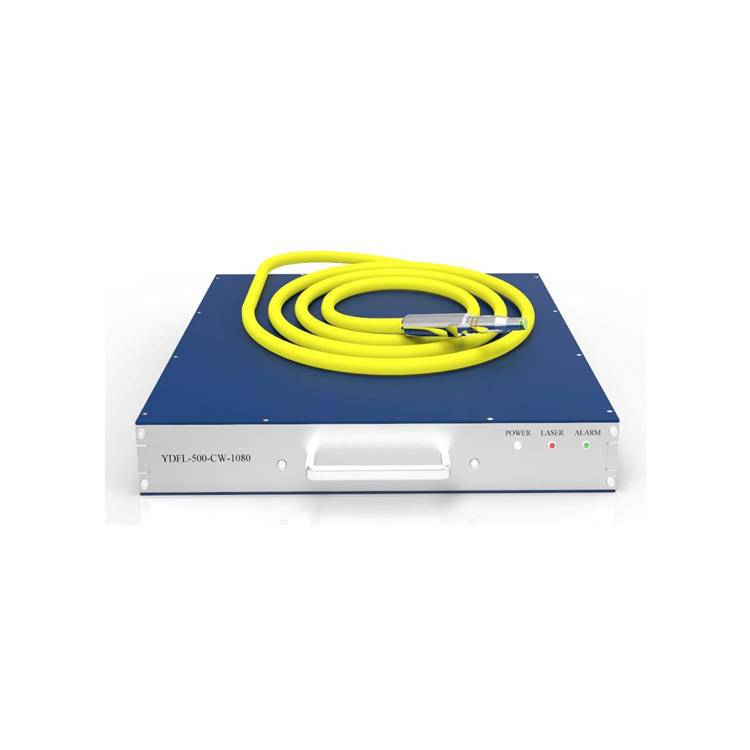

    500W fiber laser

    Fiber laser 500W systems



    Fiber laser 500W

    Features

  • CW Power Output (max.) 500W
  • Wavelength length 1080+/-10nm
  • M^2 ~1.3
  • Power tuning range 10-100%
  • Input voltage 110-240VAC

    • Typical Specifications


    General Spec. Type Units
    CW power output (max.) 500 W
    Polarization Random
    Rise/fall time less 5 us
    Max modulation frequency 100 kHz
    Collimated beam diameter 1, 5, 8, (custom) mm
    Delivery fiber length 8-10 (or custom) m
    Cooling method Water
    Max Power Consumption 2200 W
    Case operating temperature 10-40 (water: 15-25 deg ) Celsius
    Case storage temperature -10 to 60 Celsius
    Dimension 500X480X180 mm
    Minimum fiber bend radius 150 mm
